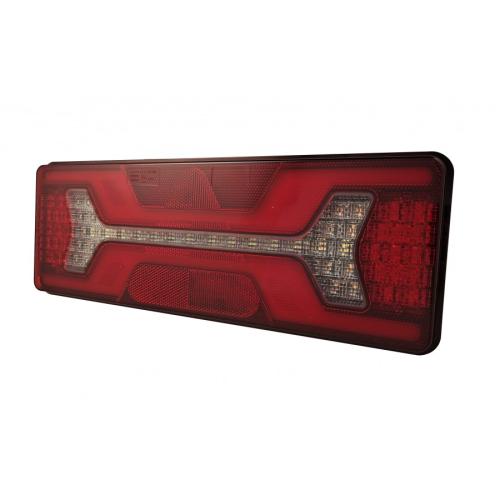

RIGHT RECTANGULAR 12v 24v LED REAR LAMP WITH BUILT IN RESISTOR, STOP TAIL INDICATOR FOG REVERSE LIGHTS LED GLOBAL LG566

Product Details

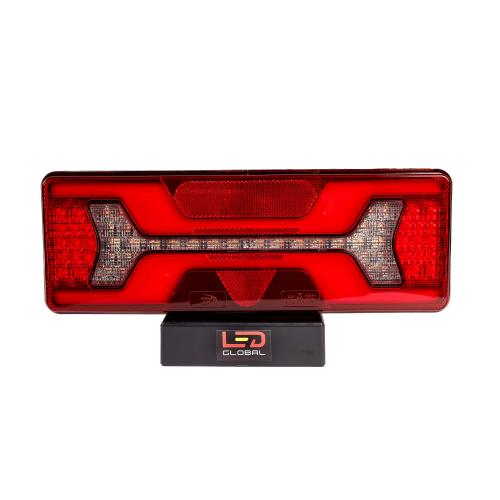

9-33v LED Combination Tail Light with Dynamic Indicator + Built In Smart Resistor (RH) - LG566

General Characteristics

• Application: LED Trailer Tail Light Combination
• Direction: Right Hand Side
• Stop/Tail/ Indicator/Fog/Reverse/Reflector
• 9-33vApplication
• Built-in smart load resistance on indicators
• Built-in rear connection plug
• 50,000h / E Mark Certified / IP68
• ECE R10, R3, R4, R6, R7, R23, R38, R91 Approved
• EMC - CISPR25 Class 4 (Radio Frequency Suppression)
• Supplied with 7 Pin Plug & 100cm of cable
• Adaptor plug available to suit Volvo / Renault (Part Number LG1811)

Technical Light Properties

• Light Colour: Amber/ Red/ White
• Colour temperature: 6000K On Reverse

Electrical Characteristics

• High intensity CREE XTE LEDs
• Suitable for 9-33V DC
• Vibration Test to 15G

Dimensions

• Lamp width: 375 mm
• Lamp height: 130 mm
• Lamp thickness: 33 mm

Wiring Diagram

• Earth wire = Blue
• Yellow Wire = Tail
• Black Wire = Reverse
• Brown Wire = Indicator
• Grey Wire = Brake
• White Wire = Fog
